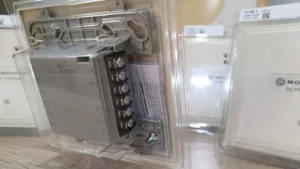

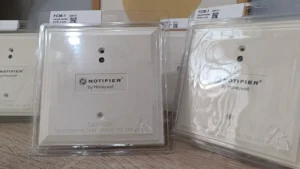

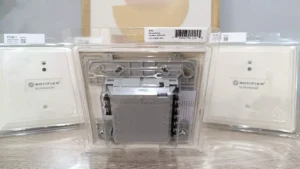

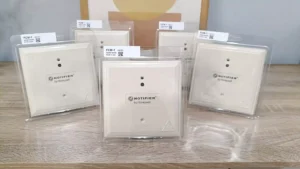

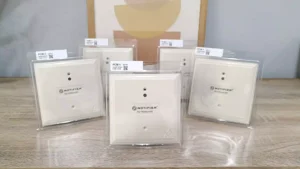

Jual FCM-1 Fire Control Module Notifier for Alarm Bell, Horns, Strobes, & Fire Lamp

Silahkan download Datasheet FCM-1 Fire Control Module Notifier by Honeywell di dalam bagian artikel ini. Module FCM-1 kompatible untuk menjadi perangkat address pada Panel Controller Alarm Notifier NFS-320 dan FMM-101-CH. Selain module ini, sebagai Distributor Notifier kami juga jual produk-produk Honeywell lainnya.

Apa itu FCM-1 Fire Control Module Notifier by Honeywell

FCM-1(A) Control Module: The FCM-1(A) Addressable Control Module provides Notifier intelligent fire alarm control panels a circuit for Notification Appliances (horns, strobes, speakers, etc.). Addressability allows the FCM-1(A) to be activated, either manually or through panel programming, on a select (zone or area of coverage) basis.

FRM-1(A) Relay Module: The FRM-1(A) Addressable Relay Module provides the system with a dry-contact output for activating a variety of auxiliary devices, such as fans, dampers, control equipment, etc. Addressability allows the dry contact to be activated, either manually or through panel programming, on a select basis.

FlashScan® (U.S. Patent 5,539,389) is a communication protocol developed by NOTIFIER Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs.

Keunggulan

• Built-in type identification automatically identifies these devices to the control panel.
• Internal circuitry and relay powered directly by two-wire SLC loop. The FCM-1(A) module requires power (for horns, strobes, etc.), or audio (for speakers).
• Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.
• LED blink may be deselected globally (affects all devices).
• High noise immunity (EMF/RFI).
• The FCM-1(A) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).
• Wide viewing angle of LED.
• SEMS screws with clamping plates for wiring ease.
• Direct-dial entry of address 01– 159 for FlashScan loops, 01 – 99 for CLIP mode loops.
• Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).

Aplikasi Penggunaan FCM-1

The FCM-1(A) is used to switch 24 VDC audible/visual power, high-level audio (speakers). The FRM-1(A) may be programmed to operate dry contacts for applications such as door holders or Air Handling Unit shutdown, and to reset four-wire smoke detector power.

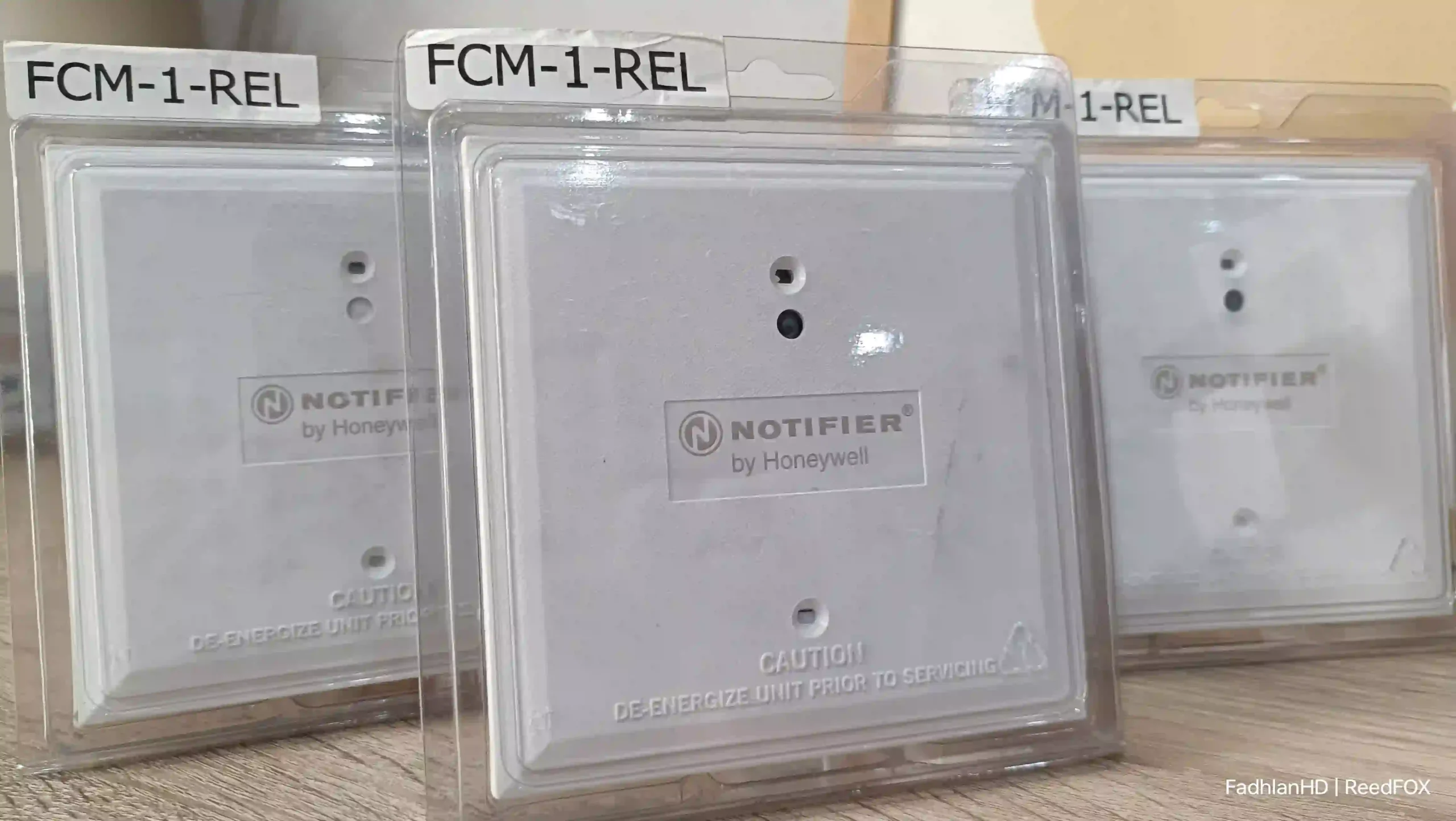

NOTE: Refer to the SLC Manual (PN 51253) for details regarding releasing applications with the FCM-1(A). Refer to the FCM-1-REL datasheet (DN-60390) for new FlashScan® releasing applications.

Konstruksi Material Module

• The face plate is made of off-white heat-resistant plastic.
• Controls include two rotary switches for direct-dial entry of address (01-159).
• The FCM-1(A) is configured for a single Class B (Style Y) or Class A (Style Z) Notification Appliance Circuit.
• The FRM-1(A) provides two Form-C dry contacts that switch together.

Cara Kerja FCM-1 Fire Control Module Notifier

Each FCM-1(A) or FRM-1(A) uses one of 159 possible module addresses on a SLC loop (99 on CLIP loops). It responds to regular polls from the control panel and reports its type and status, including the open/normal/short status of its Notification Appliance Circuit (NAC). The LED blinks with each poll received. On command, it activates its internal relay. The FCM-1(A) supervises Class B (Style Y) or Class A (Style Z) notification or control circuits.

Upon code command from the panel, the FCM-1(A) will disconnect the supervision and connect the external power supply in the proper polarity across the load device. The disconnection of the supervision provides a positive indication to the panel that the control relay actually turned ON. The external power supply is always relay isolated from the communication loop so that a trouble condition on the external power supply will never interfere with the rest of the system.

Rotary switches set a unique address for each module. The address may be set before or after mounting. The built-in TYPE CODE (not settable) will identify the module to the control panel, so as to differentiate between a module and a sensor address.

Spesifikasi Module FCM-1(A)

• Normal operating voltage: 15 to 32 VDC.
• Maximum current draw: 6.5 mA (LED on).
• Average operating current: 350 A direct poll, 375 A group poll with LED flashing, 485 A Max. (LED flashing, NAC shorted.)
• Maximum NAC Line Loss: 4 VDC.
• External supply voltage (between Terminals T10 and
• T11): Maximum (NAC): Regulated 24 VDC; Maximum (Speakers): 70.7 V RMS, 50W.
• Drain on external supply: 1.7 mA maximum using 24 VDC supply; 2.2 mA Maximum using 80 VRMS supply.
• Max NAC Current Ratings: For class B wiring system, the current rating is 3A; For class A wiring system, the current rating is 2A.
• Temperature range: 32°F to 120°F (0°C to 49°C).
• Humidity range: 10% to 93% non-condensing.
• Dimensions: 4.5″ (114.3 mm) high x 4″ (101.6 mm) wide x 1.25″ (31.75 mm) deep. Mounts to a 4″ (101.6 mm) square x 2.125″ (53.975 mm) deep box.
• Accessories: SMB500 Electrical Box; CB500 Barrier.

Spesifikasi Module FRM-1(A)

• Normal operating voltage: 15 to 32 VDC. Maximum current draw: 6.5 mA (LED on).
• Average operating current: 230 A direct poll; 255 A group poll.
• EOL resistance: not used.
• Temperature range: 32°F to 120°F (0°C to 49°C).
• Humidity range: 10% to 93% non-condensing.
• Dimensions: 4.5″ (114.3 mm) high x 4″ (101.6 mm) wide x 1.25″ (31.75 mm) deep. Mounts to a 4″ (101.6 mm) square x 2.125″ (53.975 mm) deep box.
• Accessories: SMB500 Electrical Box; CB500 Barrier

Listings and Approvals

In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult fac- tory for latest listing status.

• UL: S635
• ULC: S3705 (A version only) • FM Approved
• CSFM: 7300-0028:0219
• MEA: 14-00-E
• FDNY: COA #6067, #6065

Contact Ratings for FRM-1(A)

Jual FCM-1 Fire Control Module & Jual FRM-1 Fire Relay Module Notifier by Honeywell Distributor Jakarta

Anda bisa menghubungi kami melalui WhatsApp jika ingin bertanya atau membeli FCM-1 Fire Control Module Notifier atau FRM-1 Fire Relay Module Notifier. Untuk mendapatkan penawaran harga terbaik dari kami selaku Distributor produk Notifier by Honeywell hubungi telepon 0813-1111-0220.
