Silahkan download Datasheet FMM-101-CH Mini Monitoring Module Notifier by Honeywell di dalam bagian artikel ini. Module FMM-101-CH kompatible untuk menjadi perangkat address pada Panel Controller Alarm Notifier NFS-320. Selain Module FMM-101-CH, sebagai Distributor Notifier kami juga jual produk-produk Honeywell lainnya.

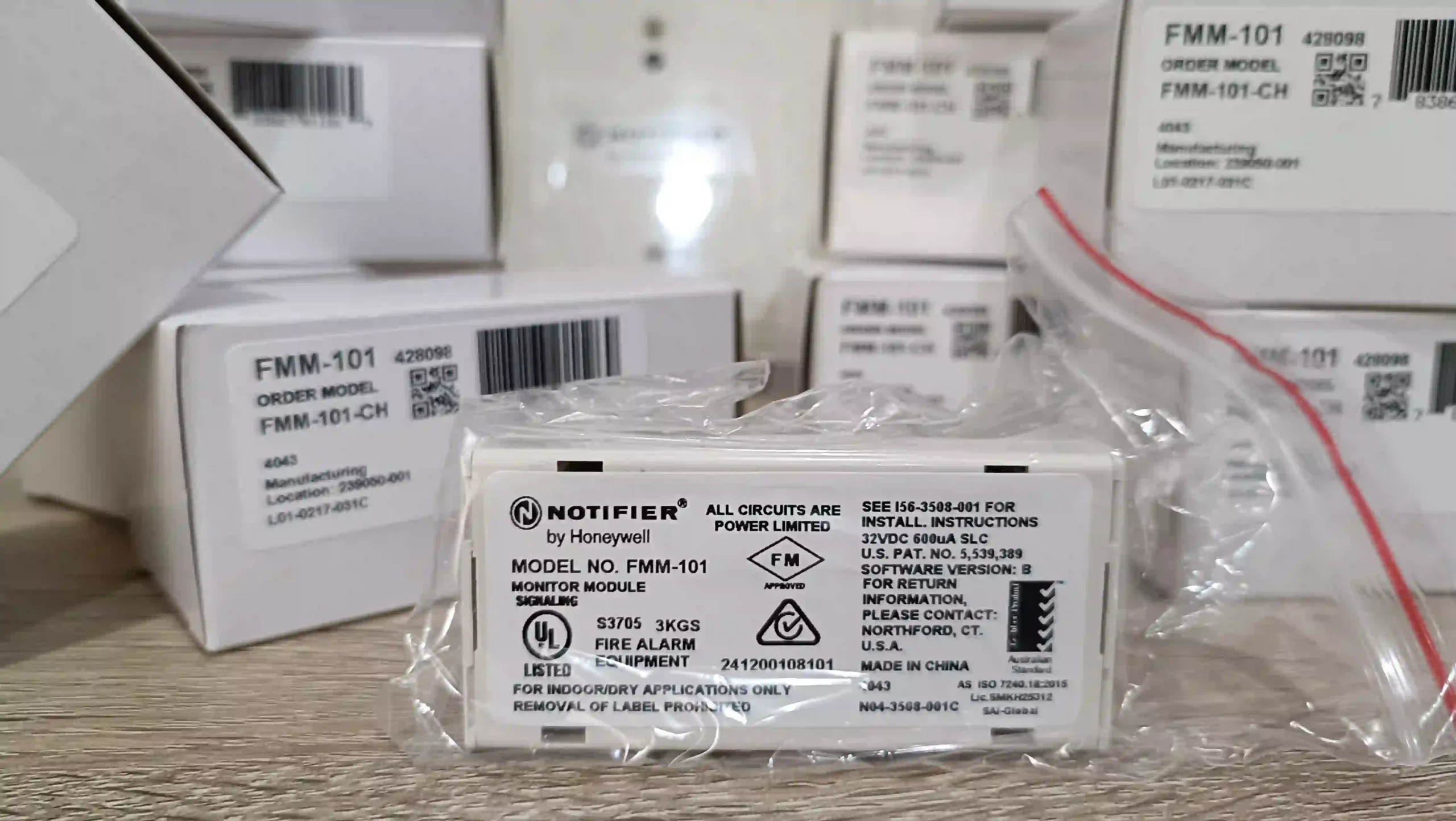

Apa itu FMM-101-CH Mini Monitor Module Notifier by Honeywell
The FMM-101(A) Mini Monitor Module can be installed in a single-gang junction directly behind the monitored unit. Its small size and light weight allow it to be installed without rigid mounting. The FMM-101(A) is intended for use in intelligent, two-wire systems where the individual address of each module is selected using rotary switches. It provides a two-wire initiating device circuit for normally-open-contact fire alarm and security devices. The FMM-101(A) can be used to replace MMX-101(A) modules in existing systems.
Notifier - FMM-101 Monitor Module, Installation and Maintenance Instructions (I56-3508)
Keunggulan
- Built-in type identification automatically identifies this device as a monitor module to the panel.
- Powered directly by two-wire SLC loop. No additional power required.
- High noise (EMF/RFI) immunity.
- Tinned, stripped leads for ease of wiring.
- Direct-dial entry of address: 01 – 159 on FlashScan loops; 01 – 99 on CLIP loops.
Aplikasi Penggunaan FMM-101(A)
Use to monitor a single device or a zone of four-wire smoke detectors, manual fire alarm pull stations, waterflow devices, or other normally-open dry-contact devices. May also be used to monitor normally-open supervisory devices with special supervisory indication at the control panel. Monitored circuit/device is wired as an NFPA Style B (Class B) Initiating Device Circuit. A 47K Ohm End-of-Line Resistor (provided) terminates the circuit.
Cara Kerja FMM-101(A)
Each FMM-101(A) uses one of the available module addresses on an SLC loop. It responds to regular polls from the control panel and reports its type and the status (open/normal/short) of its Initiating Device Circuit (IDC).
Spesifikasi Module
- Nominal operating voltage: 15 to 32 VDC.
- Average operating current: 350 μA, 1 communication every 5 seconds, 47k EOL; 600 μA Max. (Communicating, IDC Shorted).
- Maximum IDC wiring resistance: 1500 Ohms. Maximum IDC Voltage: 11 Volts.
- Maximum IDC Current: 450 μA.
- EOL resistance: 47K Ohms.
- Temperature range: 32°F to 120°F (0°C to 49°C). Humidity range: 10% to 93% noncondensing.
- Dimensions: 1.3″ (3.302 cm) high x 2.75″ (6.985 cm) wide x 0.65″ (1.651 cm) deep.
- Wire length: 6″ (15.24 cm) minimum.
Jual FMM-101-CH Mini Monitoring Module Notifier by Honeywell Distributor Jakarta
Anda bisa menghubungi kami melalui WhatsApp jika ingin bertanya atau membeli FMM-101-CH Mini Monitoring Module Notifier. Untuk mendapatkan penawaran harga terbaik dari kami selaku Distributor produk Notifier by Honeywell hubungi telepon 0813-1111-0220.
