Silahkan download Datasheet NBG-12LX Addressable Dual-Action Manual Pull Station Notifier by Honeywell di dalam bagian artikel ini. Manual Call Point NBG-12LX kompatible untuk menjadi perangkat address pada Panel Controller Alarm Notifier NFS-320E dan NFS-640E. Selain MCP NBG-12LX, sebagai Distributor Notifier kami juga jual produk-produk Honeywell lainnya, seperti NBG-12S, NBG-12L, NBG-12LOB, dan NBG-12LRA.
Apa itu MCP NBG-12LX Addressable Dual-Action Manual Pull Station Notifier by Honeywell
The Notifier NBG-12LX is a state-of-the-art, dual-action (i.e., requires two motions to activate the station) pull station that includes an addressable interface for any Notifier intelligent control panel except FireWarden series panels, and the NSP-25 panel. Because the NBG-12LX is addressable, the control panel can display the exact location of the activated manual station. This leads fire personnel quickly to the location of the alarm.

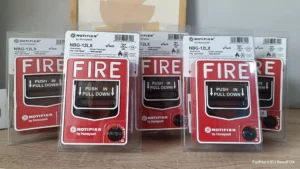

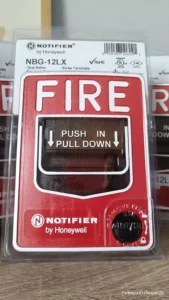

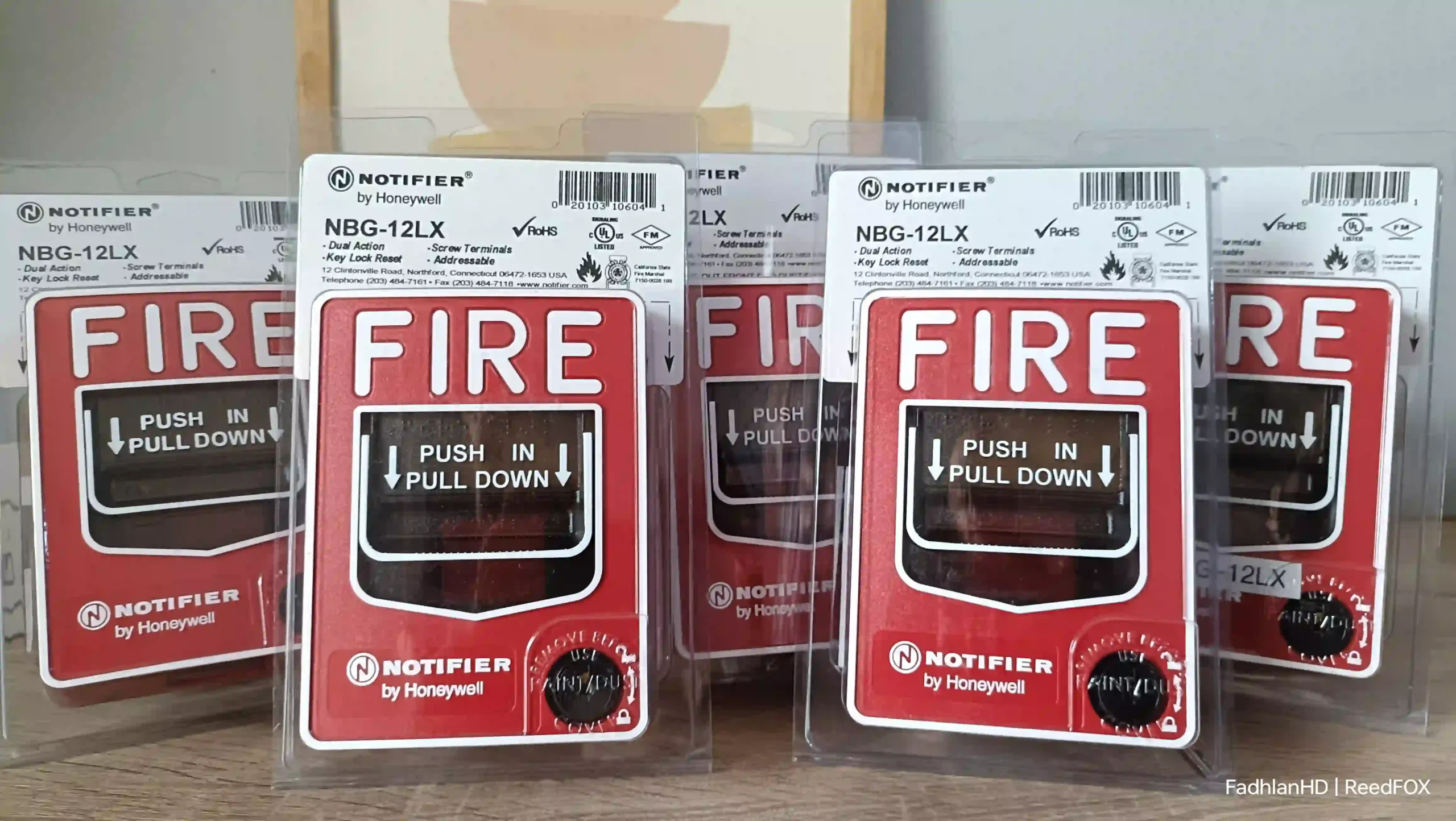

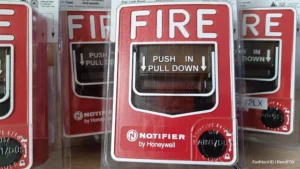

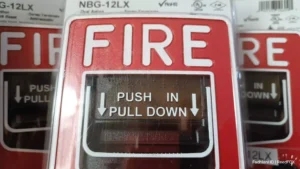

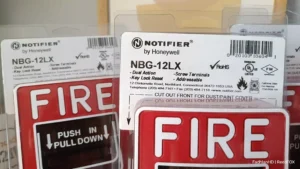

Notifier - NBG-12LX Addressable Manual Pull Station (DN-6726)
Keunggulan Notifier NBG-12LX by Honeywell
- Maintenance personnel can open station for inspection and address setting without causing an alarm condition.
- Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
- Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated.
- Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire).
- Can be surface mounted (with SB-10 or SB-I/O) or semi-flush mounted. Semi-flush mount to a standard single-gang, double-gang, or 4″ (10.16 cm) square electrical box.
- Smooth dual-action design.
- Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.
- Highly visible.
- Attractive shape and textured finish.
- Key reset.
- Includes Braille text on station handle.
- Optional trim ring (BG12TR).
- Meets UL 38, Standard for Manually Actuated Signaling Boxes.
- Up to 99 NBG-12LX stations per loop on CLIP protocol loops.
- Up to 159 NBG-12LX stations per loop on FlashScan® protocol loops.
- Dual-color LED blinks green to indicate normal on FlashScan® systems.
Konstruksi Material NBG-12LX Addressable Manual Call Point
Shell, door, and handle are molded of durable polycarbonate material with a textured finish.
Spesifikasi Notifier Addressable NBG-12LX Manual Pull Station
- Shipping Weight: 9.6 oz. (272.15 g)
- Normal operating voltage: 24 VDC.
- Maximum SLC loop voltage: 28.0 VDC.
- Maximum SLC standby current: 375 A.
- Maximum SLC alarm current: 5 mA.
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% (noncondensing)
- For use indoors in a dry location
Instalasi Addressable NBG-12LX Dual-Action Manual Pull Station
The NBG-12LX will mount semi-flush into a single-gang, double-gang, or standard 4″ (10.16 cm) square electrical outlet box, or will surface mount to the model SB-10 or SB-I/O surface backbox.
If the NBG-12LX is being semi-flush mounted, then the optional trim ring (BG12TR) may be used. The BG12TR is usually needed for semi-flush mounting with 4″ (10.16 cm) or double-gang boxes (not with single-gang boxes).
Cara Penggunaan Notifier NBG-12LX Manual Call Point
Pushing in, then pulling down on the handle causes it to latch in the down/activated position.
Once latched, the word “ACTIVATED” (in bright yellow) appears at the top of the handle, while a portion of the handle protrudes from the bottom of the station.
To reset the station, simply unlock the station with the key and pull the door open.
This action resets the handle; closing the door automatically resets the switch.
Each manual station, on command from the control panel, sends data to the panel representing the state of the manual switch.
Two rotary decimal switches allow address settings (1 – 159 on FlashScan® systems, 1 – 99 on CLIP systems).
Spesifikasi Teknis Architectural
Manual Fire Alarm Stations shall be non-coded, with a key-operated reset lock in order that they may be tested, and so designed that after actual Emergency Operation, they cannot be restored to normal except by use of a key.
An operated station shall automatically condition itself so as to be visually detected as activated.
Manual stations shall be constructed of red-colored polycarbonate material with clearly visible operating instructions provided on the cover.
The word FIRE shall appear on the front of the stations in white letters, 1.00 inches (2.54 cm) or larger.
Stations shall be suitable for surface mounting on matching backbox SB-10 or SB-I/O; or semi-flush mounting on a standard single-gang, double-gang, or 4″ (10.16 cm) square electrical box, and shall be installed within the limits defined by the Americans with Disabilities Act (ADA) or per national/local requirements.
Manual Stations shall be Underwriters Laboratories listed.
Manual stations shall connect with two wires to one of the control panel SLC loops.
The manual station shall, on command from the control panel, send data to the panel representing the state of the manual switch.
Manual stations shall provide address setting by use of rotary decimal switches.
The loop poll LED shall be clearly visible through the front of the station. The LED shall flash while in the normal condition, and stay steadily illuminated when in alarm.
Product Line Information
- NBG-12LX: Dual-action addressable pull station. Includes key locking feature. (Listed for Canadian and non-Canadian applications.)
- NBG-12LXSP: Spanish/English labelled version.
- NBG-12LXP: Portuguese labelled version.
- SB-10: Surface backbox; metal.
- SB-I/O: Surface backbox; plastic.
- BG12TR: Optional trim ring.
- 17021: Keys, set of two.
- NY-Plate: New York City trim plate.
Agency Listings and Approvals
In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL/ULC Listed: S692 (listed for Canadian and non-Canadian applications).
- MEA: 67-02-E.
- CSFM: 7150-0028:0199.
- FDNY: COA #6085 (NFS2-640), COA #6098 (NFS2-3030).
- BSMI: CI313066760047.
- U.S. Coast Guard.
- Lloyd’s Register.
- FM Approved.
- Patented: U.S. Patent No. D428,351; 6,380,846; 6,314,772; 6,632,108.
Surface Back-Box SB-10 UL/FM untuk semua Manual Pull Station NBG-12 Nofifier
Notifier SB-10 Surface Back-Box kompatible untuk semua NBG-10, NBG-12, kecuali NBG-12LRA. Selain SB-10, sebagai Distributor Notifier kami juga jual produk-produk Surface Back-Box Notifier lainnya, seperti SBA-10: Surface Backbox Metal for NBG-12LRA, dan SB-I/O: Surface Backbox Plastik untuk NBG-12LR.
- SBA-10: Surface backbox for NBG-12LRA, Metal. Dimensions 4.5” (11.43 cm) W x 8.188” (20.8 cm) L x 1.375” (3.49 cm) D.
- SB-10: Surface backbox for NBG-12LR, Metal. Dimensions 4.125” (10.48 cm) W x 5.5” (13.97 cm) L x 1.375” (3.49 cm) D.
- SB-I/O: Surface backbox for NBG-12LR, Plastic.

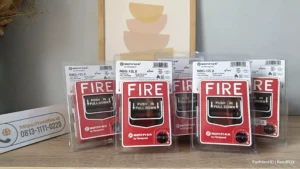

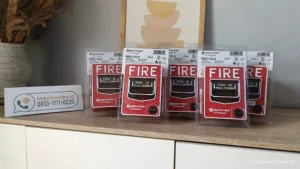

Jual MCP Notifier NBG-12LX Dual-Action Manual Pull Station by Honeywell Indonesia Distributor Jakarta
Anda bisa menghubungi kami melalui WhatsApp jika ingin bertanya atau membeli MCP Notifier NBG-12LX. Untuk mendapatkan penawaran harga terbaik dari kami selaku Distributor produk Notifier by Honeywell hubungi telepon 0813-1111-0220.
