Silahkan download Datasheet FSP-851 Series Intelligent Plug-In Photoelectric Smoke Detectors with FlashScan® Notifier by Honeywell di dalam bagian artikel ini. Addressable Smoke Detector FSP-851 kompatible untuk menjadi perangkat pendeteksi asap pada Panel Controller Alarm Notifier NFS-320 dan NFS-640. Selain smoke detector ini, sebagai Distributor Notifier kami juga jual produk-produk Honeywell lainnya, seperti pendeteksi asap FSP-951.

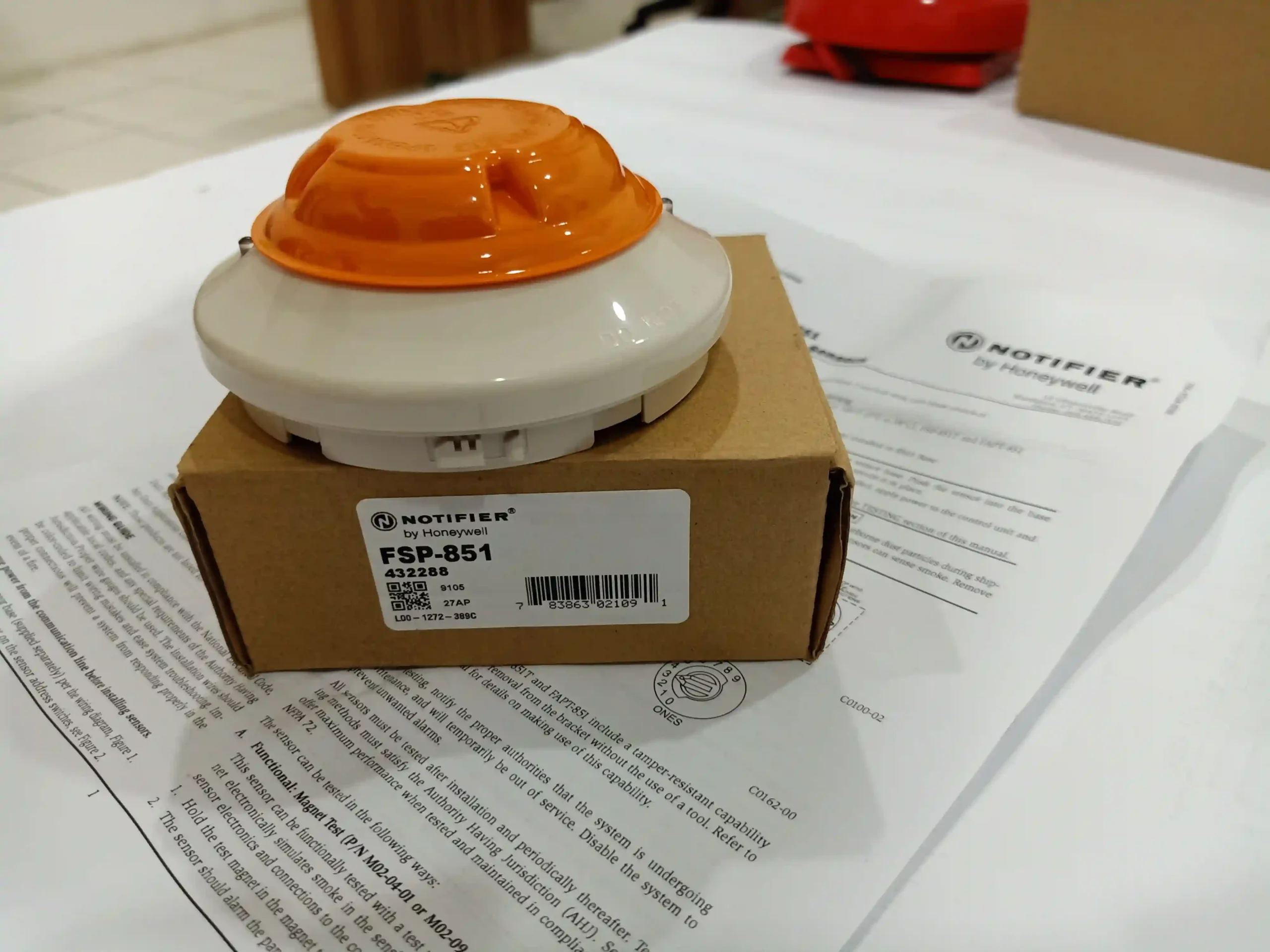

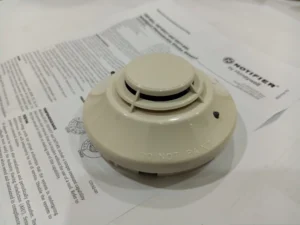

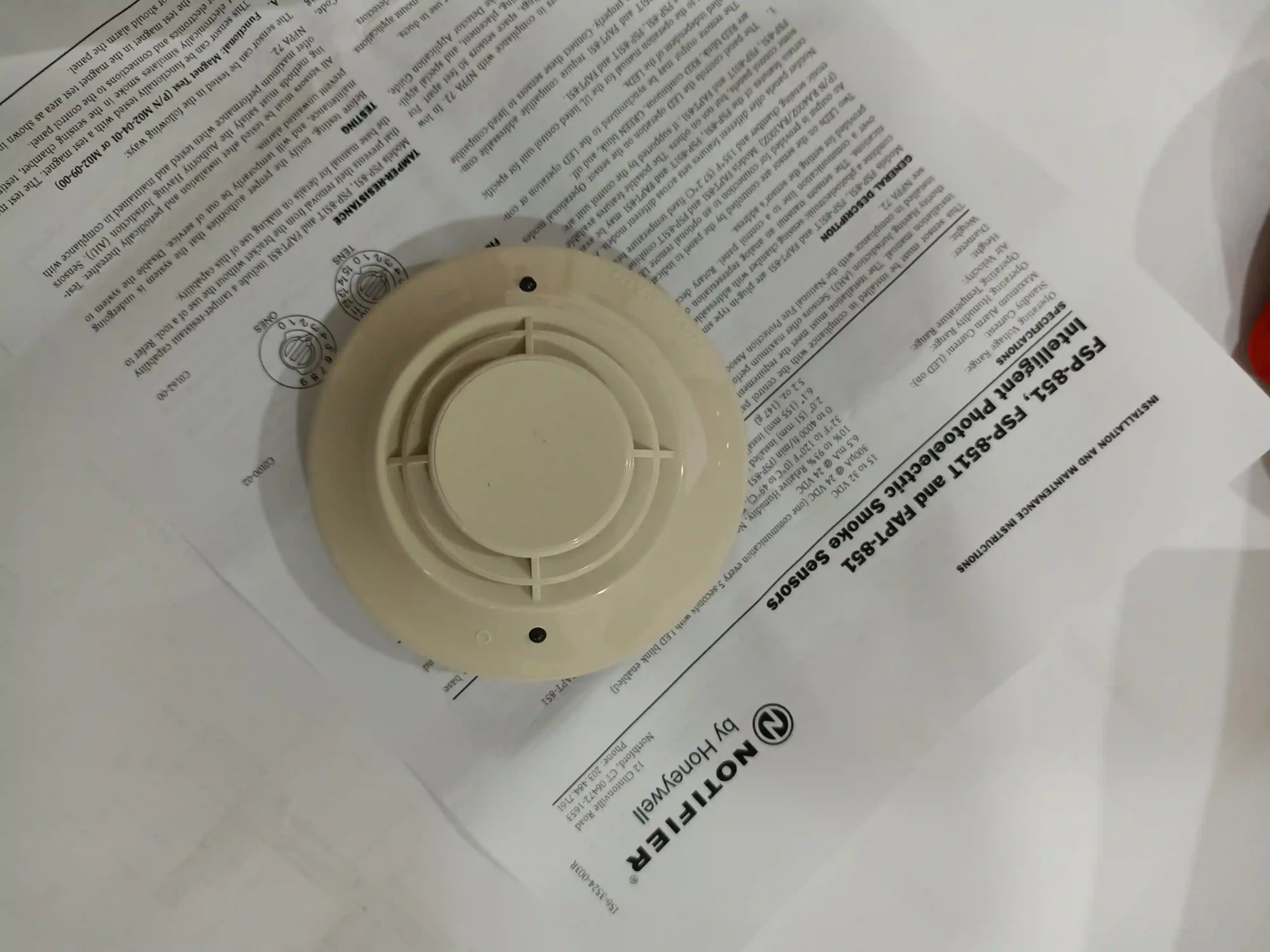

Perkenalan Notifier FSP-851 Series Intelligent Smoke Detectors Addressable
Notifier FSP-851(A) Series intelligent plug-in smoke detectors with integral communication provide features that surpass conventional detectors. Detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level.
The FSP-851(A) photoelectric detector’s unique optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources. Dual electronic thermistors add 135°F (57°C) fixed-temperature thermal sensing on the FSP-851T(A). The FSP- 851R(A) is a remote test capable detector for use with DNR(A)/DNRW duct detector housings. FSP-851(A) series detectors are compatible with Notifier Onyx and CLIP series Fire Alarm Control Panels (FACPs).
FlashScan® (U.S. Patent 5,539,389) is a communication protocol developed by Notifier that greatly increases the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices in the group has new information, the panel’s CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of earlier designs.
Notifier - FSP-851 Series, Intelligent Plug-In Photoelectric Smoke Detectors with FlashScan® (DN_6935)
Keunggulan FSP-851 Series Intelligent Photoelectric Smoke Detectors Notifier
- Sleek, low-profile design.
- Addressable-analog communication.
- Stable communication technique with noise immunity.
- Low standby current.
- Two-wire SLC connection.
- Compatible with FlashScan® and CLIP protocol systems.
- Rotary, decimal addressing (1-99 on CLIP systems, 1-159 on FlashScan systems).
- Optional remote, single-gang LED accessory.
- Dual LED design provides 360° viewing angle.
- Visible bi-color LEDs blink green every time the detector is addressed, and illuminate steady red on alarm (FlashScan systems only).
- Remote test feature from the panel.
- Walk test with address display (an address on 121 will blink the detector LED: 12-[pause]-1(FlashScan systems only).
- Built-in functional test switch activated by external magnet.
- Built-in tamper-resistant feature.
- Sealed against back pressure.
- Constructed of off-white fire-resistant plastic, designed to commercial standards, and offers an attractive appearance.
- 94-5V plastic flammability rating.
- SEMS screws for wiring of the separate base.
- Optional relay, isolator, and sounder bases.
Spesifikasi
Sensitivity: 0.5% to 2.35% per foot obscuration Size: 2.1″ (5.3 cm) high; base determines diameter.
– B210LP(A): 6.1″ (15.5 cm) diameter.
– B501(A): 4.1″ (10.4 cm) diameter.
– B200S(A): 6.875″ (17.46 cm) diameter.
– B200SR(A): 6.875″ (17.46 cm) diameter.
– B224RB(A): 6.2″ (15.748 cm) diameter.
– B224BI(A): 6.2″ (15.748 cm) diameter.
Shipping Weight: 5.2oz. (147g).
Operating Temperature range: FSP-851(A), 0°C to 49°C (32°F to 120°F). FSP-851T(A), 0°C to 38°C (32°F to 100°F). Low temperature signal for FSP-851T(A) at 45°F +/- 10°F (7.22°C +/- 5.54°C). FSP-851R(A) installed in a DNR(A)/ DNRW, -20°C to 70°C (-4°F to 158°F).
UL/ULC Listed Velocity Range: 0-4000 ft/min. (1219.2 m/ min.), suitable for installation in ducts.
Relative Humidity: 10%-93% noncondensing.
Thermal Ratings: Fixed-temperature setpoint 135°F (57°C).
DETECTOR SPACING AND APPLICATIONS
Notifier recommends spacing detectors in compliance with NFPA 72. In low airflow applications with smooth ceiling, space detectors 30 feet (9.144m) for ceiling heights 10 feet (3.148m) and higher. For specific information regarding detector spacing, placement, and special applications refer to NFPA 72. System Smoke Detector Application Guide, docu- ment A05-1003, is available at systemsensor.com
ELECTRICAL SPECIFICATIONS
Voltage Range: 15-32 volts DC peak.
Standby Current (max. avg.): 300μA @ 24VDC (one communication every five seconds with LED enabled).
LED Current (max.): 6.5mA @ 24 VDC (“ON”).
Cara Pemasangan Instalasi Intelligent Photoelectric Smoke Detectors Notifier FSP-851 Series
FSP-851(A) plug-in detectors use a separate base to simplify installation, service, and maintenance. A special tool allows maintenance personnel to plug in and remove detectors without using a ladder.
Mount base (all base types) on an electrical backbox which is at least 1.5″ (3.81 cm) deep. For a chart of compatible junction boxes, see DN-60054.
NOTE: 1) Because of inherent supervision provided by the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Style 4 (Class “B”) wiring. 2) When using relay or sounder bases, consult the ISO-X(A) installation sheet I56-1380 for device limitations between isolator modules and isolator bases.
Listings & Approvals
These listings and approvals apply to the modules specified in this document. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL Listed: S1115.
- ULC Listed: S1115 (FSP-851A, FSP-851RA, FSP-851TA).
- MEA Listed: 225-02-E .
- FM Approved.
- CSFM: 7272-0028:0206 .
- Maryland State Fire Marshal: Permit # 2122 .
- BSMI: CI313066760036.
- CCCF: Certif. # 2004081801000017 (FSP-851T) Certif. # 2004081801000016 (FSP-851).
- U.S. Coast Guard: 161.002/42/1 (NFS-640); 161.002/50/ 0 (NFS2-640/NFS-320/NFS-320C, excluding B210LP(A)).
- Lloyd’s Register: 11/600013 (NFS2-640/NFS-320/NFS- 320C, excluding B210LP(A)).
