Perkenalan Notifier FSP-951 Series Intelligent Smoke Detectors Addressable

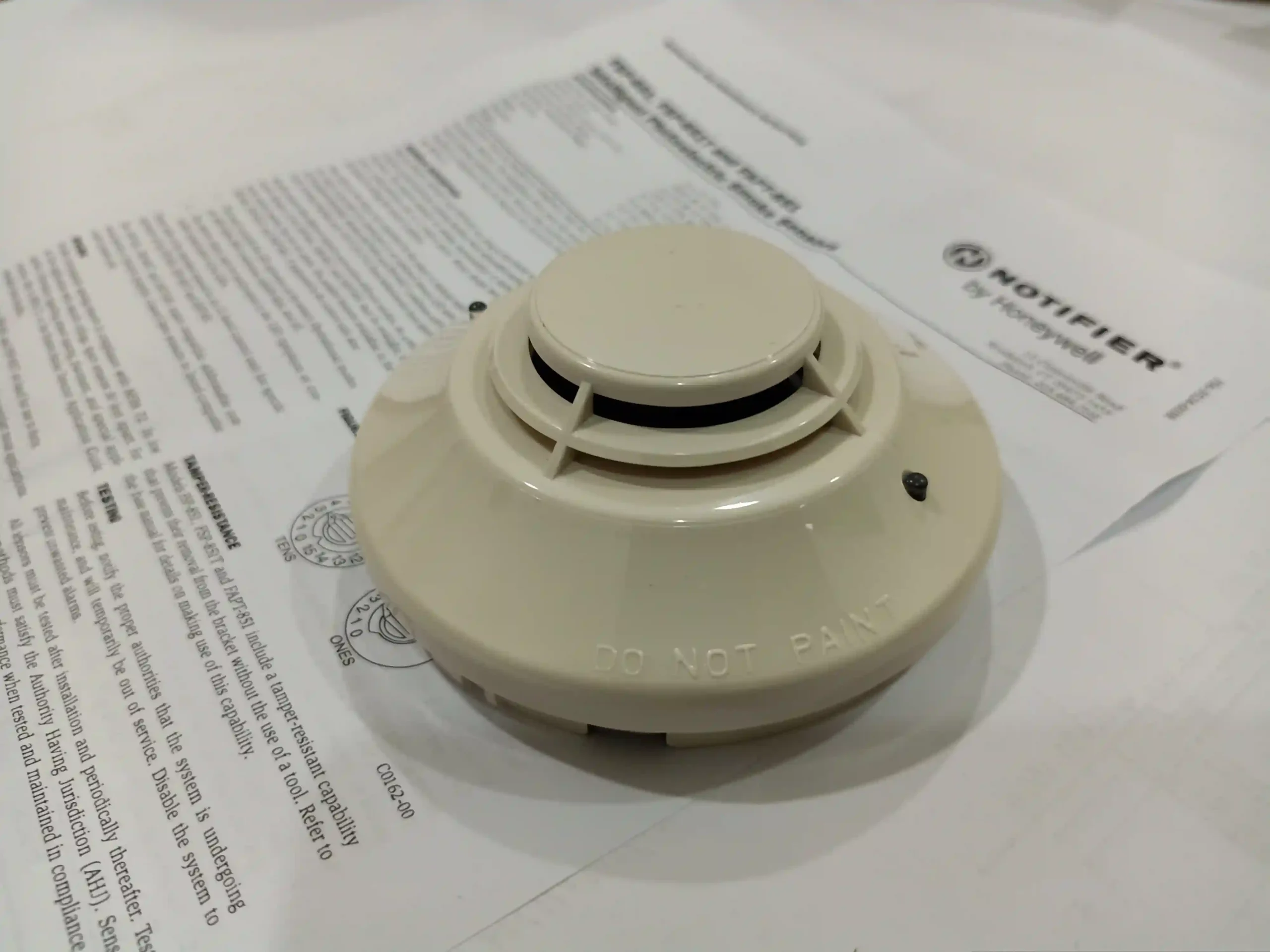

The NOTIFIER® FSP-951 Series intelligent plug-in smoke detectors are designed for both performance and aesthetics, and are direct replacements for the FSP-851 Series. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.
The FSP-951 Series detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level.
Dual electronic thermistors add 135°F (57°C) fixed temperature thermal sensing on the FSP-951T. The FSP-951R is a remote test capable detector for use with DNR Series duct detector housings. FSP-951 series detectors are available for both FlashScan® and CLIP applications as designated.
Notifier - FSP-951 Series Addressable Photoelectric Smoke Detectors (DN-60977)
Keunggulan FSP-951 Series Intelligent Smoke Detectors Addressable Notifier
SLC LOOP:
- Two-wire SLC loop connection
- Unit uses base for wiring
- Compatible with FlashScan® and CLIP protocol systems
- Stable communication technique with noise immunity
ADDRESSING:
- Addressable by device
- Rotary, decimal addressing (Refer to the NOTIFIER panel manuals for device capacity.)
ARCHITECTURE:
- Sleek, low-profile, stylish design
- Unique single-source design to respond quickly and dependably to a broad range of fires
- Integral communications and built-in device-type identification
- Built-in tamper resistant feature
- Remote test feature from the panel
- Walk test with address display (an address on 121 will blink the detector LED: 12-[pause]-1(FlashScan systems only)
- Built-in functional test switch activated by external magnet
- Removable cover and insect-resistant screen for simple field cleaning
- Expanded color options
OPERATION:
- Designed to meet UL 268 7th Edition
- Factory preset at 1.5% nominal sensitivity for panel alarm thresh- old level
- LED “blinks” when the unit is polled (communicating with the fire panel) and latches in alarm.
- Low standby current
MECHANICALS:
- Sealed against back pressure
- SEMS screws for wiring of the separate base
- Designed for direct-surface or electrical-box mounting
- Plugs into separate base for ease of installation and maintenance
- Separate base allows interchange of photoelectric, ionization and thermal sensors
OPTIONS:
- Optional relay, isolator, and sounder bases.
Instalasi Cara Pemasangan Photoelectric Smoke Detectors FSP-951 Series Addressable
FSP-951 Series plug-in intelligent smoke detectors use a detach- able base to simplify installation, service and maintenance. Installation instructions are shipped with each detector.
Mount detector base (all base types) on an electrical backbox which is at least 1.5″ (3.81 cm) deep. For a chart of compatible junction boxes, see DN-60054.
NOTE: Because of the inherent supervision provided by the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Class “B” wiring only.
When using relay or sounder bases, consult the ISO-X(A) installation sheet I56-1380 for device limitations between isolator modules and isolator bases.
Construction
These detectors are constructed of fire-resistant plastic. The FSP- 951 Series plug-in intelligent smoke detectors are designed to commercial standards and offer an attractive appearance.
Operation
Each FSP-951 Series detector uses one of the panel’s addresses (total limit is panel dependent) on the NOTIFIER Signaling Line Circuit (SLC). It responds to regular polls from the control panel and reports its type and the status. If it receives a test command from the panel (or a local magnet test), it stimulates its electronics and reports an alarm. It blinks its LEDs when polled and turns the LEDs on when commanded by the panel. The FSP-951 Series offers fea- tures and performance that represent the latest in smoke detector technology.
Spesifikasi
Sensitivity:
- UL Applications: 0.5% to 4.0% per foot obscuration.
- ULC Applications: 0.5% to 3.5% per foot obscuration
Size: 2.0″ (51mm) high; base determines diameter
– B300-6 series: 6.1″ (15.6 cm) diameter
– B501 series: 4″ (10.2 cm) diameter
For a complete list of detector bases see DN-60981
Shipping weight: 3.4 oz. (95 g)
Operating temperature range:
- FSP-951 Series: 32°F to 122°F (0°C to 50°C)
- FSP-951T Series: 32°F to 100°F(0°C to 38°C)
- FSP-951R Series installed in DNR/DNRA/DNRW, -4°F to 158°F (-20°C to 70°C)
UL/ULC Listed Velocity Range: 0-4000 ft/min. (1219.2 m/min.), suitable for installation in ducts
Relative humidity: 10% – 93% non-condensing
Thermal ratings: fixed-temperature set point 135°F (57°C), rate-of-rise detection 15°F (8.3°C) per minute, high temperature heat 190°F (88°C)
ELECTRICAL SPECIFICATIONS
Voltage range: 15 – 32 volts DC peak
Standby current (max. avg.): 200μA @ 24 VDC (one communication every 5 seconds with LED enabled)
Max current: 4.5 mA @ 24 VDC (“ON”)
DETECTOR SPACING AND APPLICATIONS
NOTIFIER recommends spacing detectors in compliance with NFPA 72. In low airflow applications with smooth ceiling, space detectors 30 feet (9.1m). For specific information regarding detector spacing, placement, and special applications refer to NFPA 72. A System Smoke Detector Application Guide, document SPAG91, is available at www.systemsensor.com.
Listings and Approvals
Listings and approvals below apply to the FSP-951 Series detectors. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL/ULC Listing: S1115
- FM Approved
- CSFM: 7272-0028:0503
