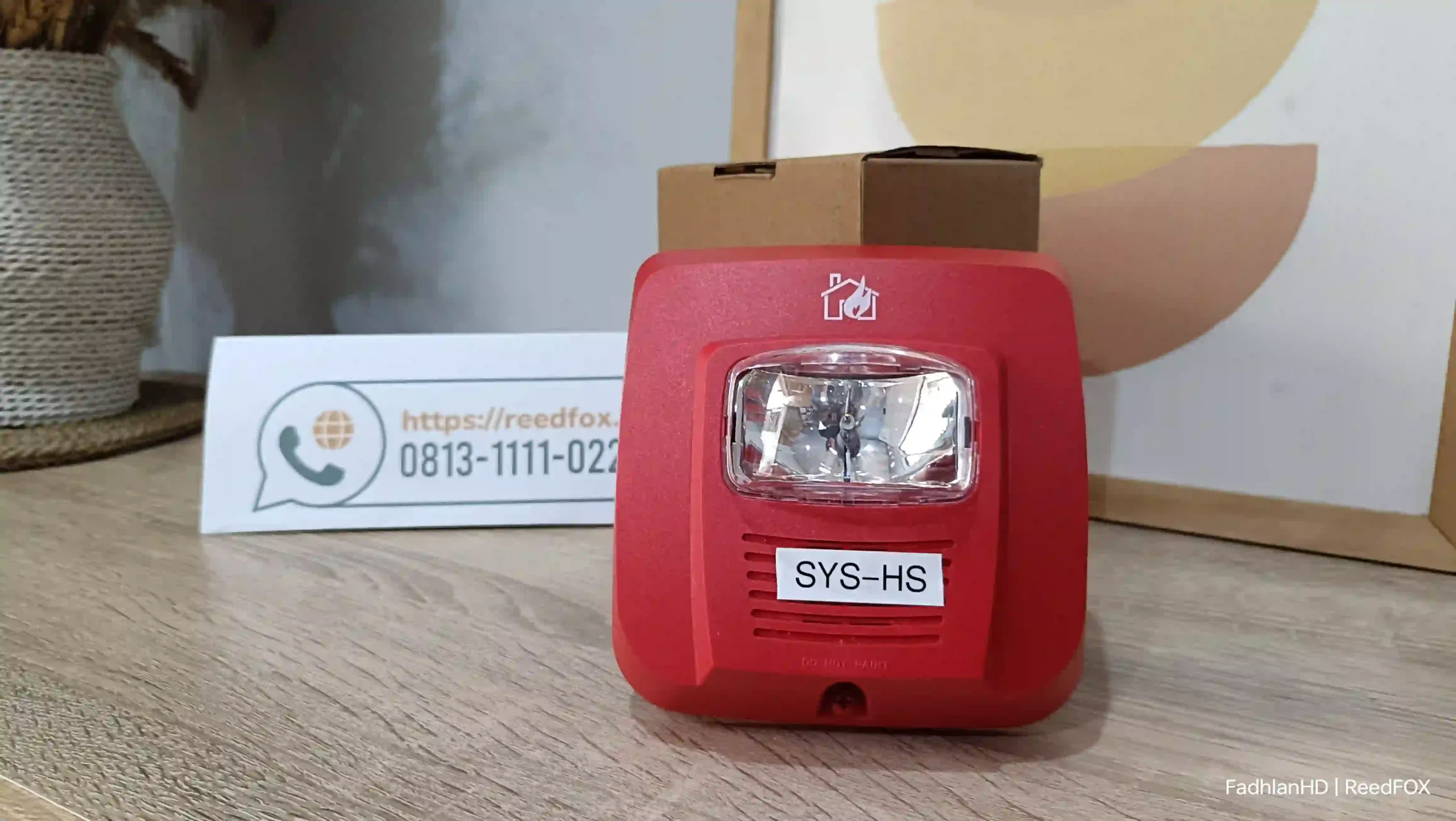

Silahkan download Datasheet SYS-HS Jual SYS-HS Conventional Selectable Output Horns, Strobes & Horn Strobes System Sensor by Honeywell Harga Distributor Notifier di dalam bagian artikel ini. System Sensor SYS-HS Horns Strobes kompatible untuk menjadi perangkat output pada Panel Controller Alarm Notifier NFS-320E dan NFS-640E. Selain SYS-HS, sebagai Distributor Notifier dan System Sensor, kami juga jual produk-produk Honeywell lainnya, seperti SYS-ST dan P2RL.

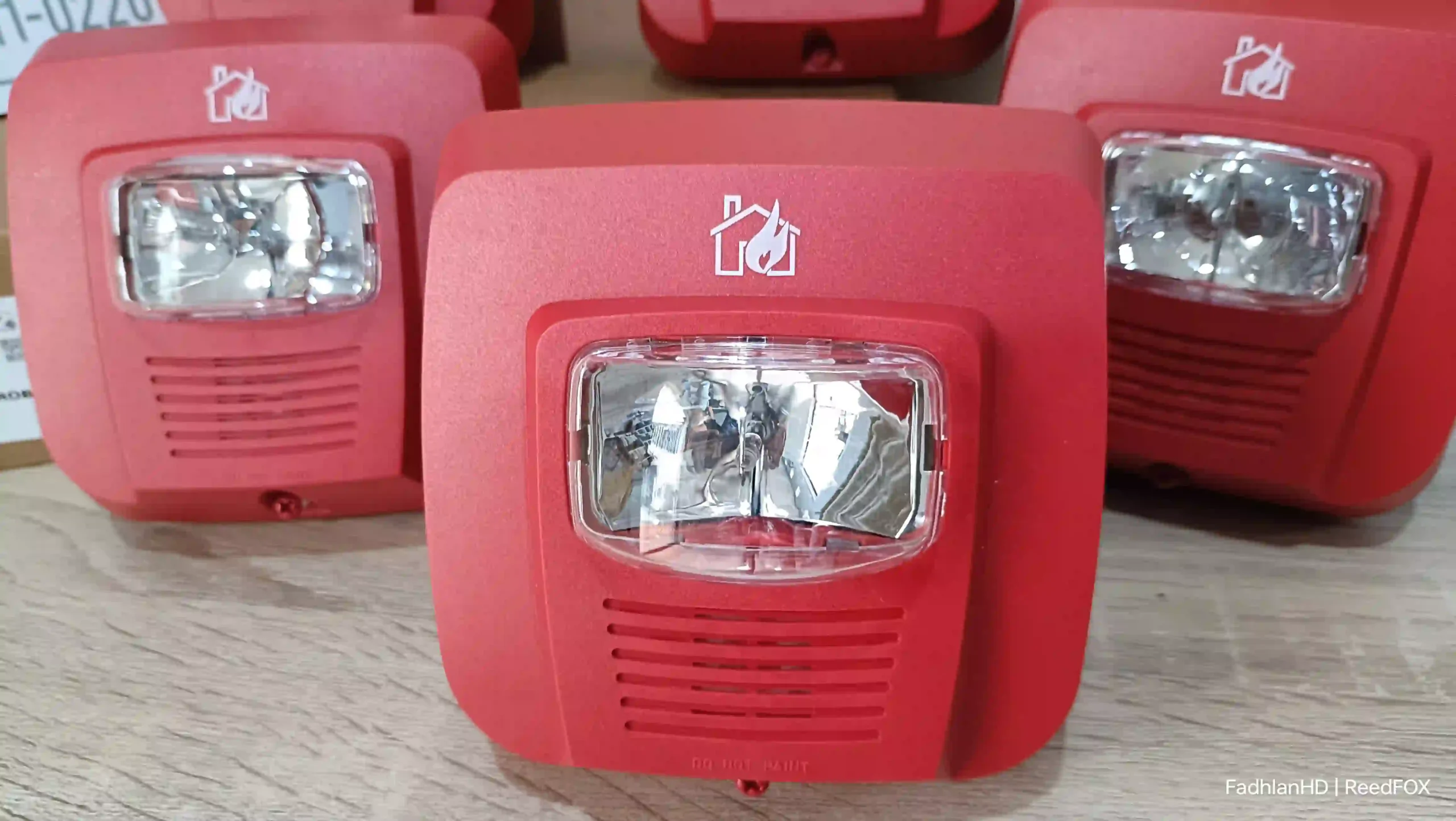

Apa itu Horns Strobe SYS-HS System Sensor by Honeywell
System Sensor selectable output horns, strobes & horn strobes are rich with features guaranteed to reduce installation and maximize profits.
The System Sensor line of notification devices offers the most flexible and easy-to-use line of horns, strobes, and horn strobes in the industry. With red housing, universal fire symbol and a ceiling mount accessory available these devices can meet virtually any application. They also mount to a wide variety of back box sizes to offer the most flexibility in installation.
This line of devices features a wide variety of features that simplifies installations. The mounting plate allows the devices to be compatible with a wide range of back box sizes. Settings for the strobe and horn are done using easy to set rotary switches on the back of the device.
Synchronization is achieved without the use of additional modules; when powered with a filtered DC source, the strobe portion is capable of self synchronization for 30 minutes per NFPA 72. Devices work on 24 volts DC or full wave rectified power. Three candela
options are available for the strobe. On the horn strobe model, high and low volume are options for the horn as well as a continuous tone or temporal 3 output. The mini horn model has a continuous tone output and one volume setting.
Available accessories include a round trim ring to adapt the wall device for ceiling mount applications. Simply install the round ring over the square device for a perfect fit on the ceiling. An adapter plate is also available for the mini horn. It fits to a wider range of back boxes and fits with the family look of the horn strobe and strobe devices.
System Sensors - Datasheet SYS-HS SYS-ST - Selectable Output Horns, Strobes & Horn Strobes Honeywell
Keunggulan Horn, Strobes & Horn Strobes System Sensor SYS-HS
- Mounting plate included for compatibility with a wide range of back box sizes.
- Three field selectable candela settings: 15, 75, and 115.
- Easy to use rotary dials for selection of candela and horn settings.
- Built in synchronization feature keeps strobes in sync for up to 30 minutes.
- Strobes Listed to UL 1638; Horns Listed to UL 464.
- Horn settings on the horn strobe model include high and low volume, continuous or temporal 3 tone.
- Round trim ring available for ceiling mount applications.
- Universal Fire symbol is language independent.
- Trim plate allows mini horn to mount to a variety of backboxes and fit aesthetically with the horn strobe and strobe.
Keunggulan Mini-Horn System Sensor SYS-HS
- 12 and 24V operation.
- High and low volume settings.
- Temporal and non-temporal tones.
- Mounts to single gang back box.
- Compatible with MDL sunc module.
- Mechanically and electrically compatible with PA400 series Mini-Alert™ sounders.
Spesifikasi SYS-HS System Sensor – Spesifikasi Teknis Architectural
General
System Sensor strobe and horn strobes shall mount to a 2″x4″, 4″x4″, Single Gang, Double Gang, 4″ Octagon, 3.7″ x 3.7″, 2″ round, 2.36″ x 2.36″, 3.54″ x 2.6″, 1.77″ back box.
System Sensor devices shall be powered from a non-coded notification appliance circuit output and shall operate on a nominal 24 volts.
24-volt-rated notification appliance circuit outputs shall operate between 17 and 33 volts.
Devices operate between 32 and 120 degrees Fahrenheit from a regulated DC or full-wave rectified unfiltered power supply.
Strobes and horn strobes shall have field-selectable candela settings including 15, 75 and 115 cd.
The devices shall not operate on a coded power supply. Horn strobe and strobe devices shall have built-in synchronization capability.
Upon initial power up the devices shall be synchronized for up to 30 minutes.
Strobe
The strobe shall be a System Sensor Model SYS-ST or SYS-ST-C listed to UL 1638 and shall be approved for fire protective service.
The strobe shall be wired as a primary signaling notification appliance flashing at 1 Hz over the strobe’s entire operating voltage range.
The strobe light shall consist of a xenon flash tube and associated lens/reflector system.
Horn Strobe Combination
The horn strobe shall be a System Sensor Model listed to UL 1638 and UL 464 and shall be approved for fire protective service.
The horn strobe shall be wired as a primary-signaling notification appliance and comply with the Americans with Disabilities Act requirements for visible signaling appliances, flashing at 1 Hz over the strobe’s entire operating voltage range.
Lihat juga: FCM-1-REL Releasing Control Module Notifier for Fire Suppression Actuation by Honeywell
The strobe light shall consist of a xenon flash tube and associated lens/reflector system. The horn shall have two audibility options and an option to switch between a temporal three-pattern and a non-temporal (continuous) pattern. These options are set by a multiple position switch.
Mini Horn
Mini-horns shall be a System Sensor Model MHR or MHW capable of operating at nominal 12 or 24VDC and shall mount to a deep single gang back box.
Minihorn shall be listed to Underwriter’s Laboratories Standard UL464 for fire protective signaling systems.
Mini-horns shall operate between 32 and 120 degrees Fahrenheit from a regulated DC, or full-wave rectified, unfiltered power supply.
When used with the Sync•Circuit™ Module, 12-volt rated notification appliance circuit outputs shall operate between nine and 17.5 volts; 24-volt rated notification appliance circuit outputs shall operate between 17 and 33 volts.
Spesifikasi Fisik dan Kelistrikan: Horn, Strobes & Horn Strobes SYS-HS System Sensor
| Standard Operating Temperature | 32 °F to 120 °F (0 °C to 49 °C) |
| Humidity Range | 10 to 93% non-condensing |
| Strobe Flash Rate | 1 flash per second |
| Nominal Voltage | Regulated or regulated 24 DC/FWR1 |
| Operating Voltage Range2 | 16 to 33 V (24 V nominal) |
| Input Terminal Wire Gauge | 14 to 18 AWG* |

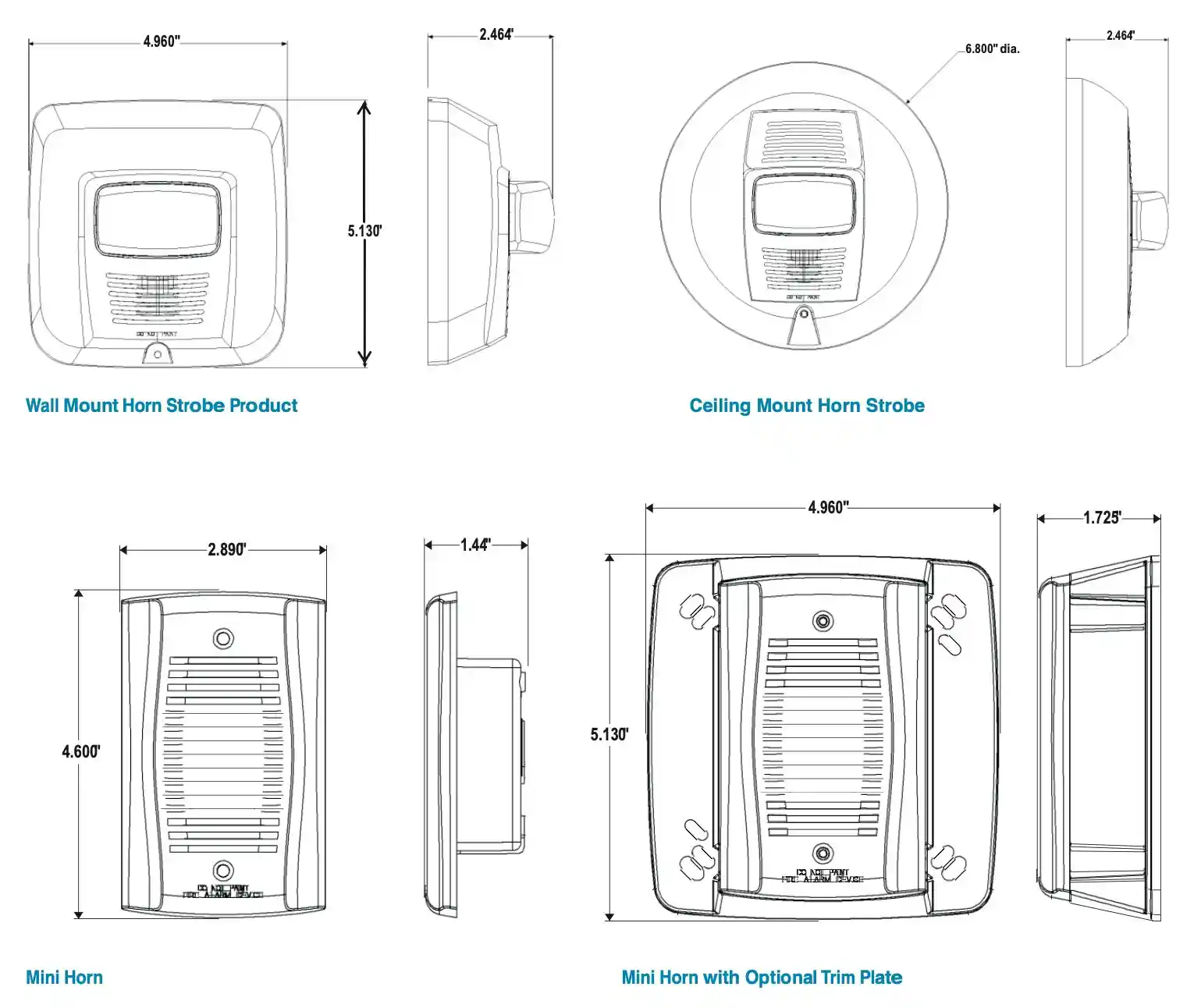

| Strobe and horn strobes dimensions including lens) | 5.15″ L x 5.0″ W x 1.5″ D (131 mm x 127mm x 38mm) |
| Ceiling trim ring dimensions (sold as a pack of 5) | 6.8 ” dia / 1.5″ depth (173 mm dia / 1.5″ depth) |

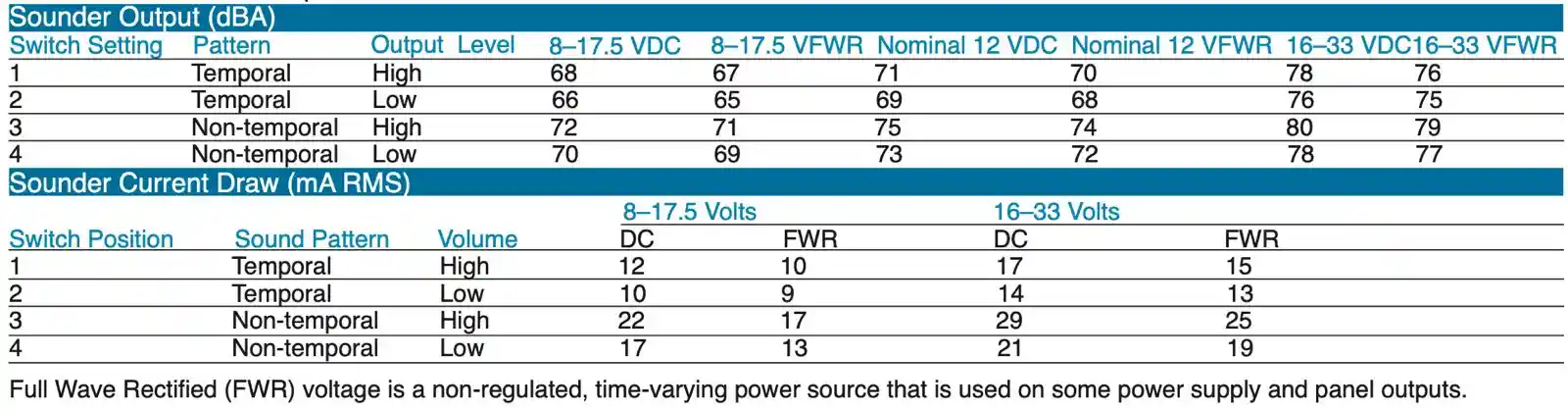

Mini-Horn UL Sound Output and Current Draw Data SYS-HS

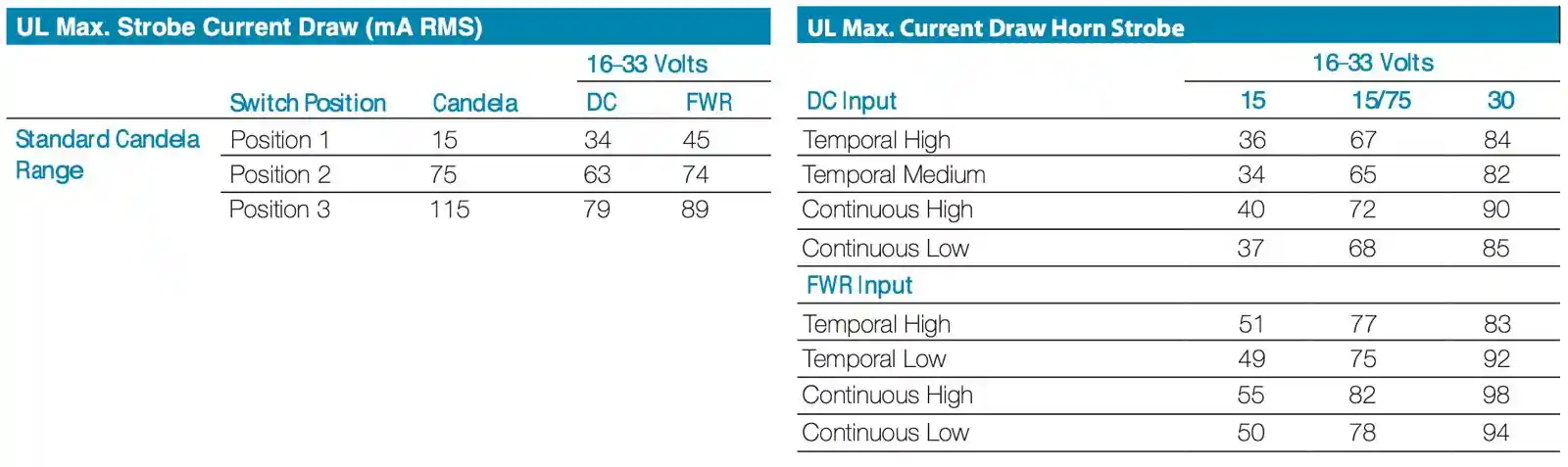

UL Current Draw Data SYS-HS

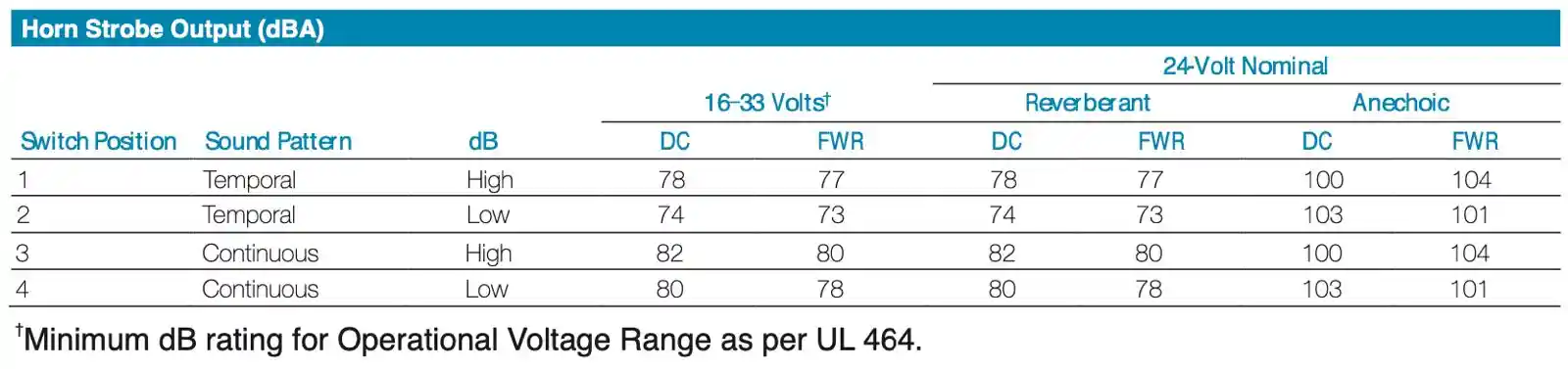

Horn Tones and Sound Output Data
System Sensor Ordering Information
Wall Horn Strobes
| Model / Part Number | Description |
|---|---|
| SYS-HS | Horn Strobe, Wall Mount |
| SYS-HS-C | Horn Strobe, Ceiling Mount |
Wall Strobes
| Model / Part Number | Description |
|---|---|
| SYS-ST | Strobe, Wall Mount |
| SYS-ST-C | Strobe, Ceiling Mount |
| SYS-CTP | Ceiling Mount Trim Plate |
Mini Horn
| Model / Part Number | Description |
|---|---|
| MHR 1 | Mini-Horn, Red |
| SYS-MH-TP | Trim Ring for use with the Mini Horn |
Jual Horns Strobe SYS-HS System Sensor by Honeywell Indonesia Distributor Notifier Jakarta
Anda bisa menghubungi kami melalui WhatsApp jika ingin bertanya atau membeli Horns Strobes SYS-HS System Sensor. Untuk mendapatkan penawaran harga terbaik dari kami selaku Distributor produk System Sensor dan Notifier by Honeywell hubungi telepon 0813-1111-0220.
